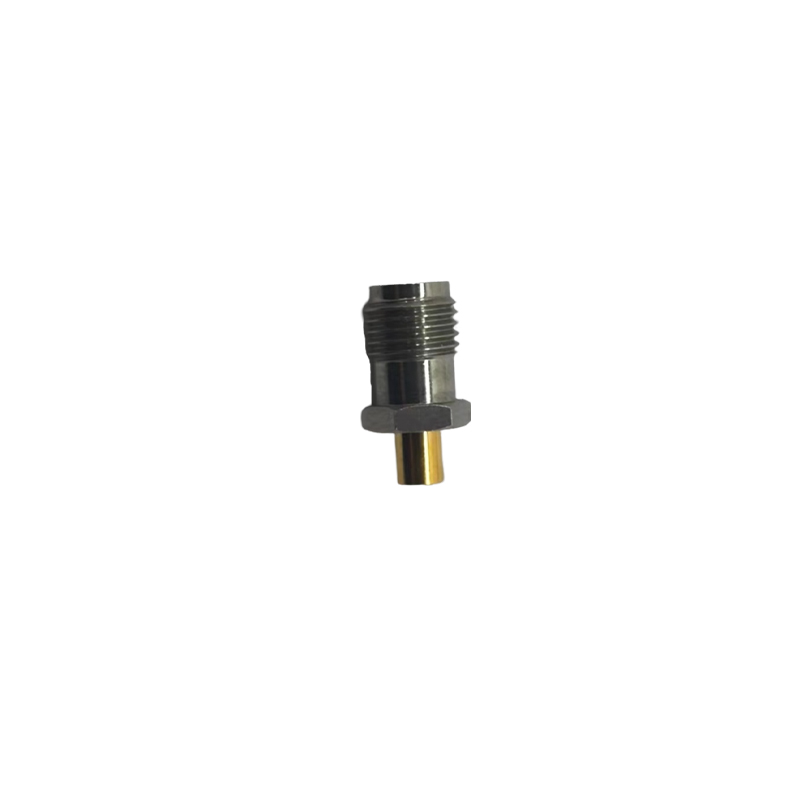

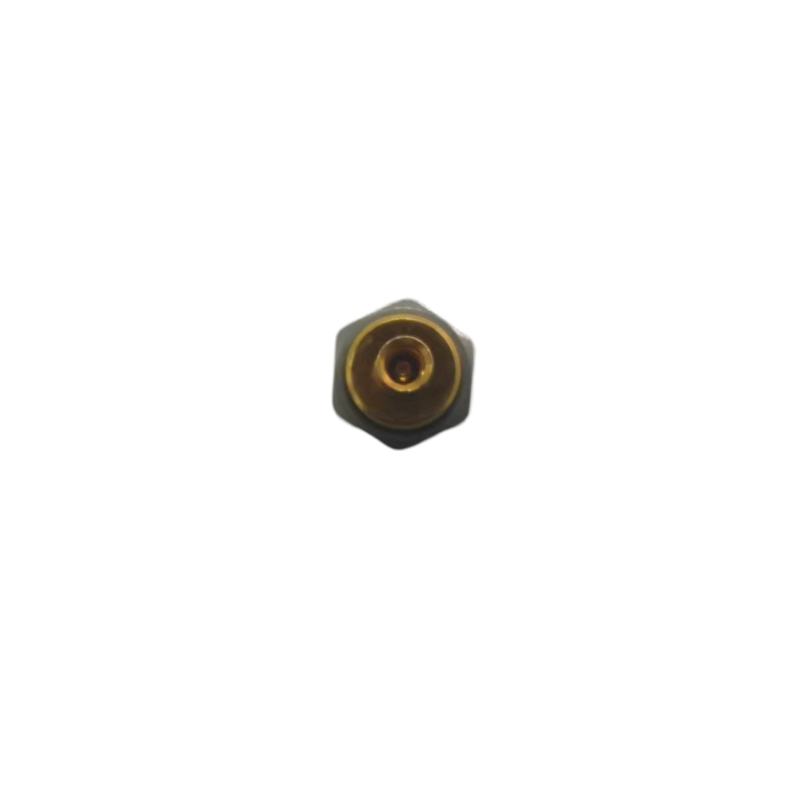

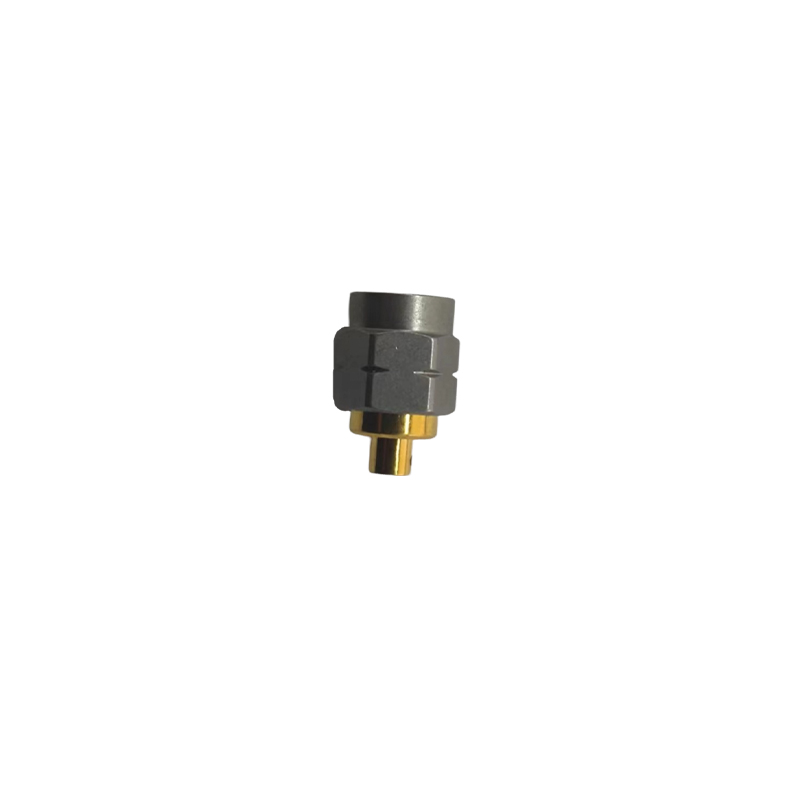

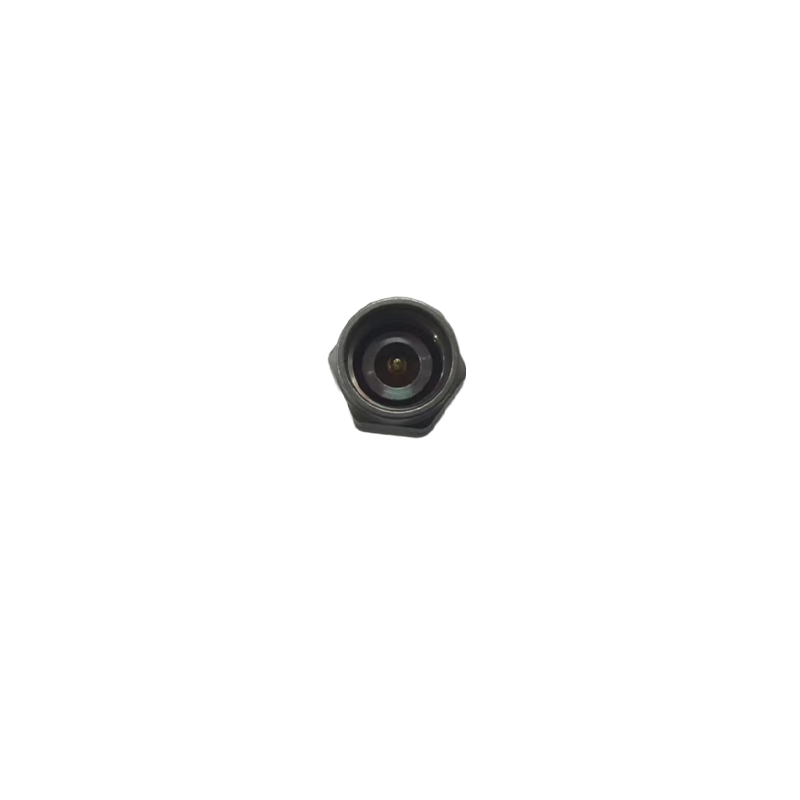

2.92 mmWave Coaxial Connector
2.92
The 2.92 series millimeter wave coaxial connector uses an air interface and has an operating frequency of up to 40GHz. It can be docked and interchanged with the SMA series and 3.5 series products. It has the advantages of small size, light weight, high frequency of use, and reliable connection. It is widely used in modern precision measurement fields and various millimeter wave communication equipment.
The 2.92 series millimeter wave coaxial connector uses an air interface and has an operating frequency of up to 40GHz. It can be docked and interchanged with the SMA series and 3.5 series products. It has the advantages of small size, light weight, high frequency of use, and reliable connection. It is widely used in modern precision measurement fields and various millimeter wave communication equipment.

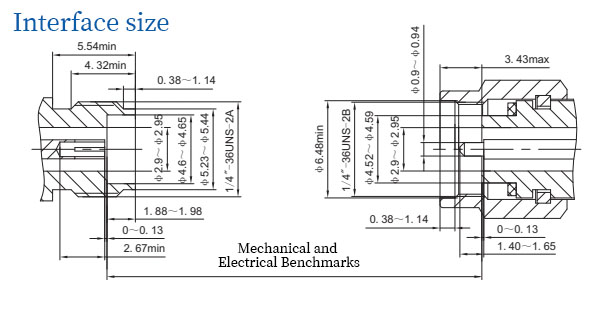

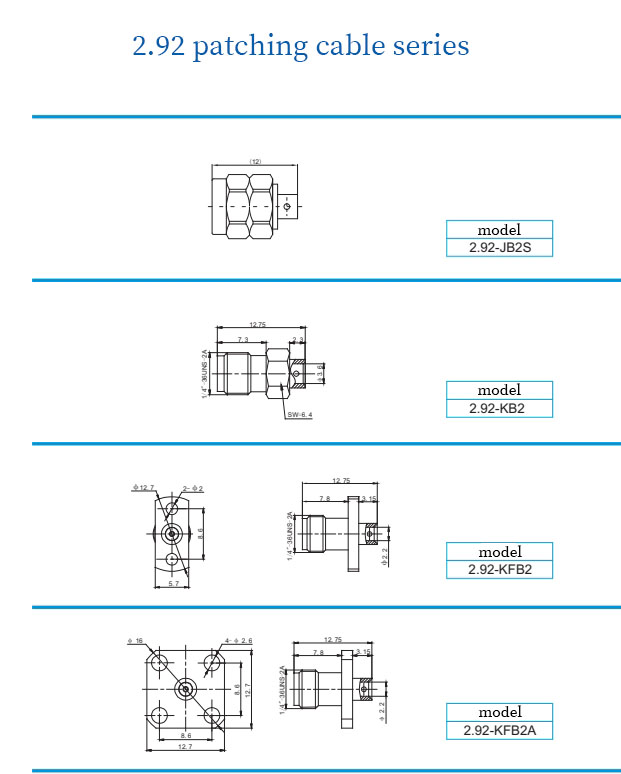

Key performance indicators |
Characteristic impedance | 50Ω | Frequency range | DC~40GHz |
Insulation resistance | ≥5000MΩ | Dielectric withstand voltage | 750V |
Contact resistance | Inner conductor ≤3.0mΩ, outer conductor ≤2.0mΩ |
RF insertion loss | ≤0.05√F(GHz)dB | Connector durability | 500次 |
Voltage standing wave ratio | DC~27GHz
1.15 | 27~40GHz
1.2 |
Materials, surface treatment |
Center contact | Pin | Brass, gold plated | Housing and other metal parts | Brass, gold or nickel plated |
Jack | Beryllium bronze, gold plated | Stainless steel, passivated |
Sealing ring | Silicone Rubber | ———— | ———— |
