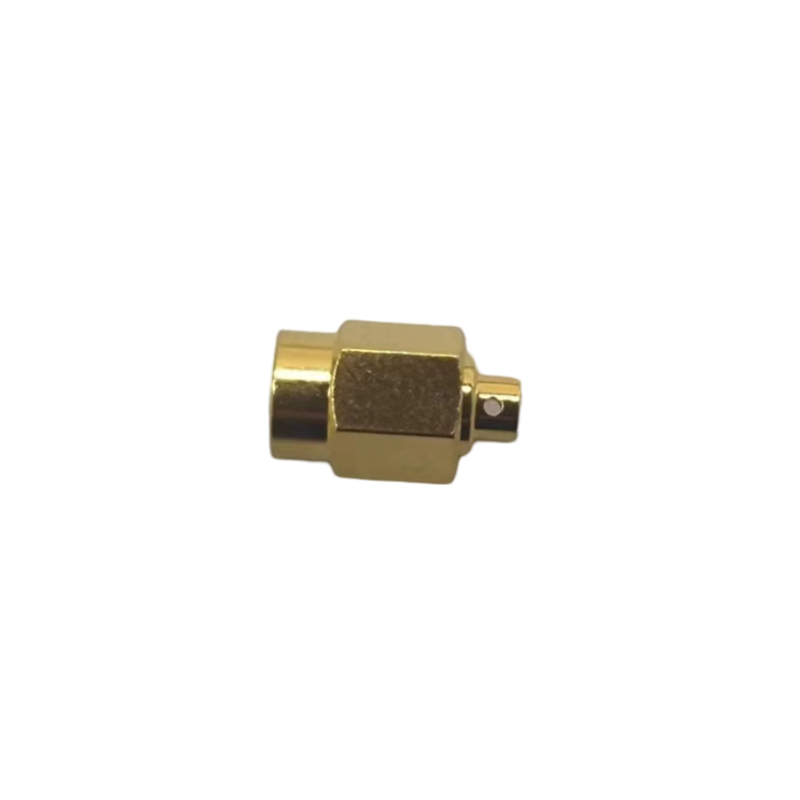

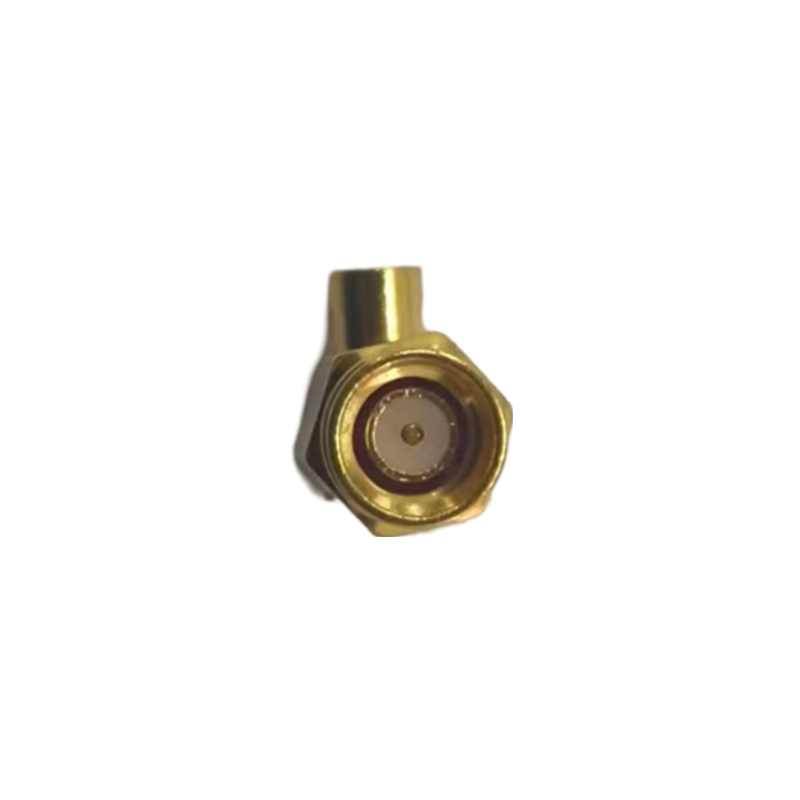

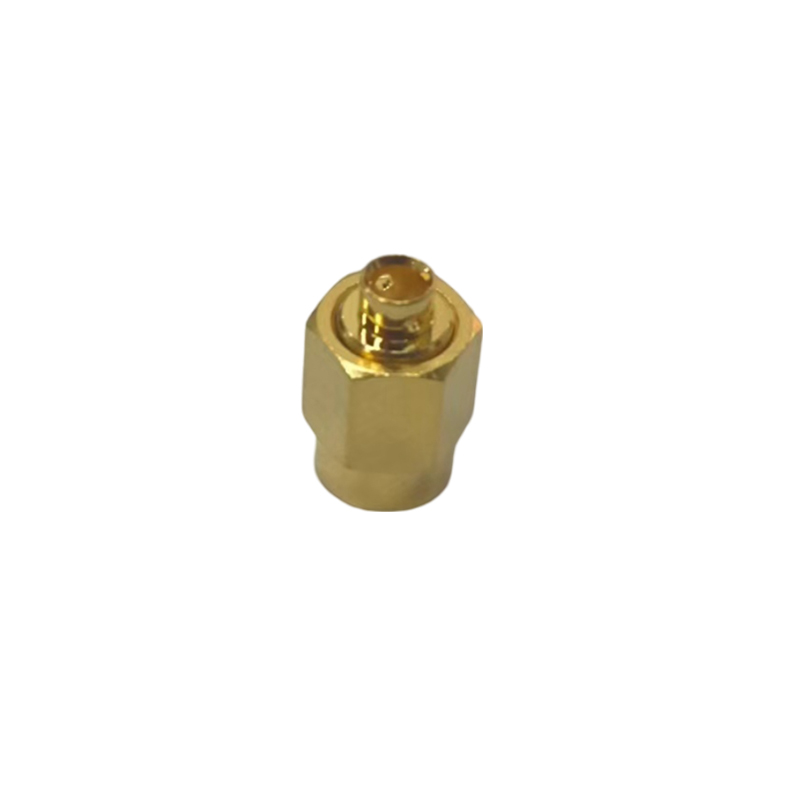

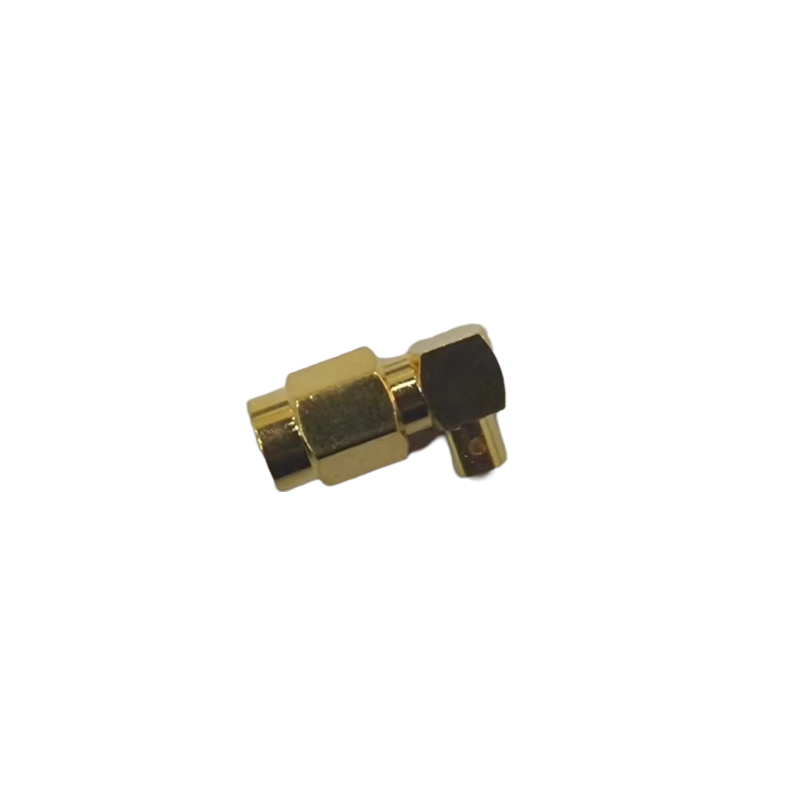

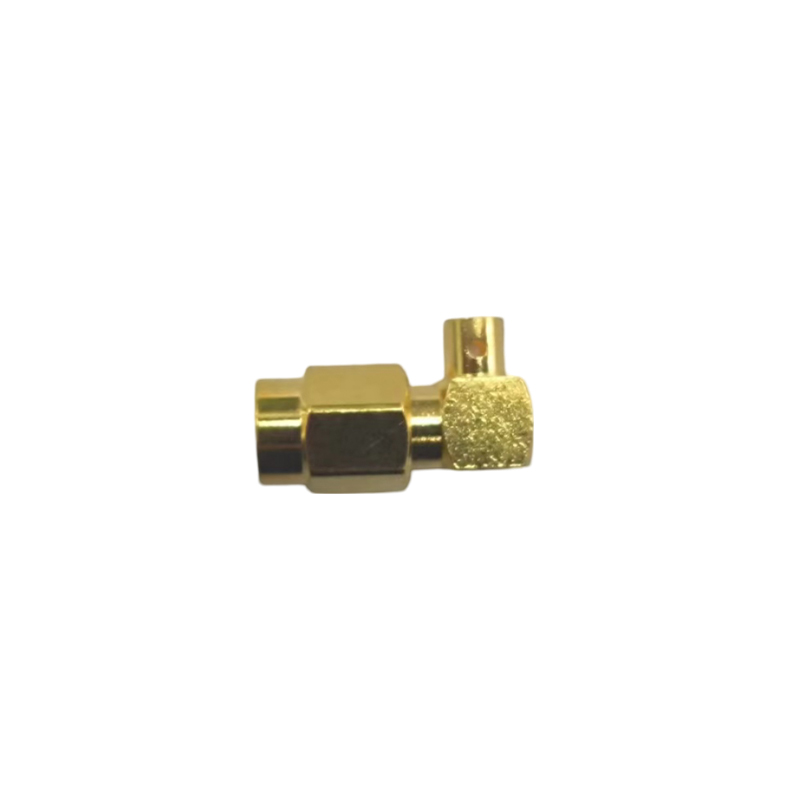

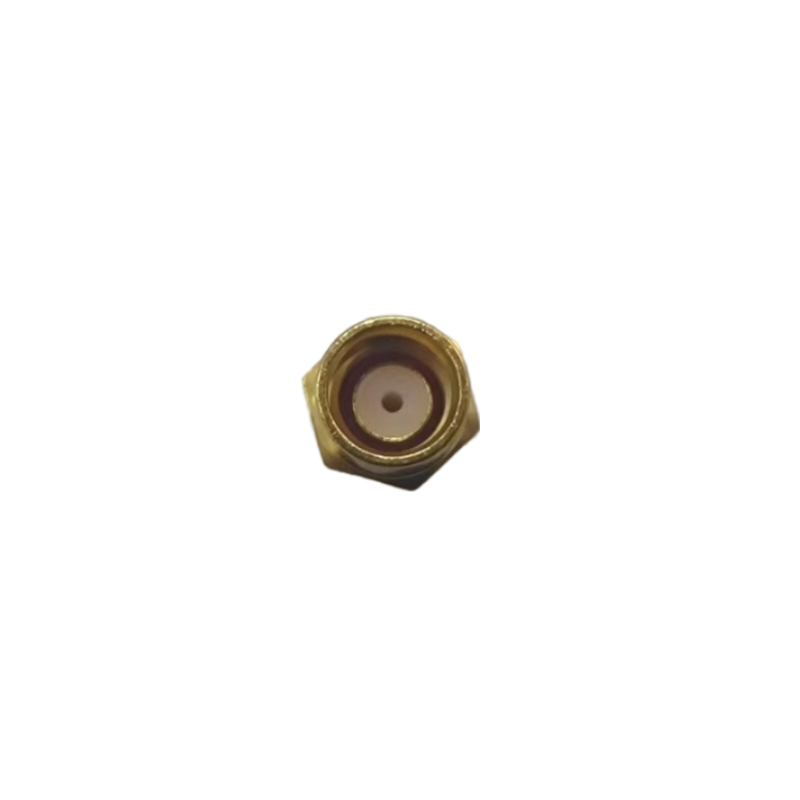

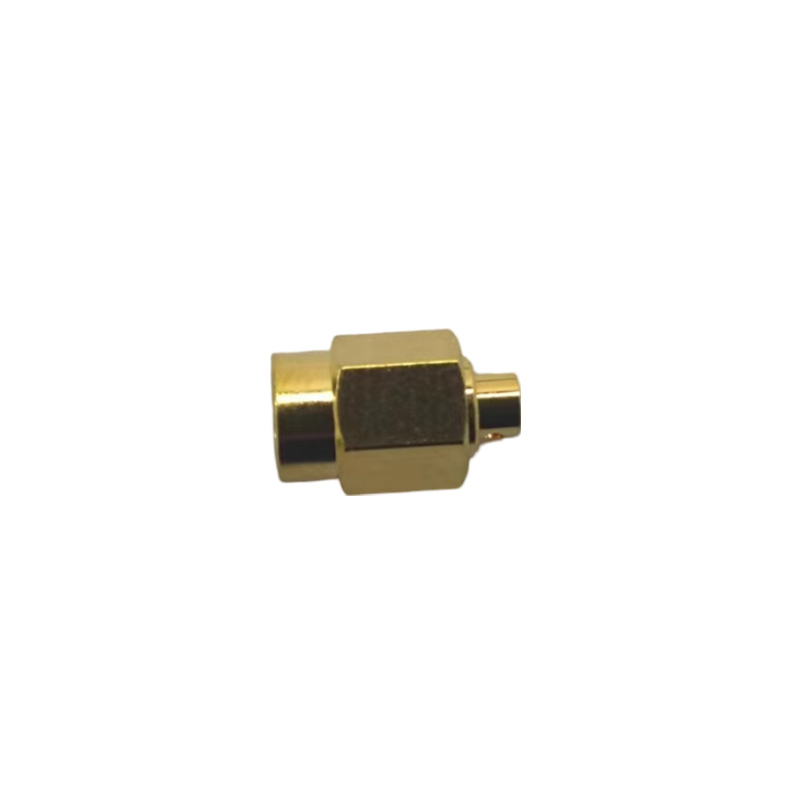

SSMA Series RF Coaxial Connectors

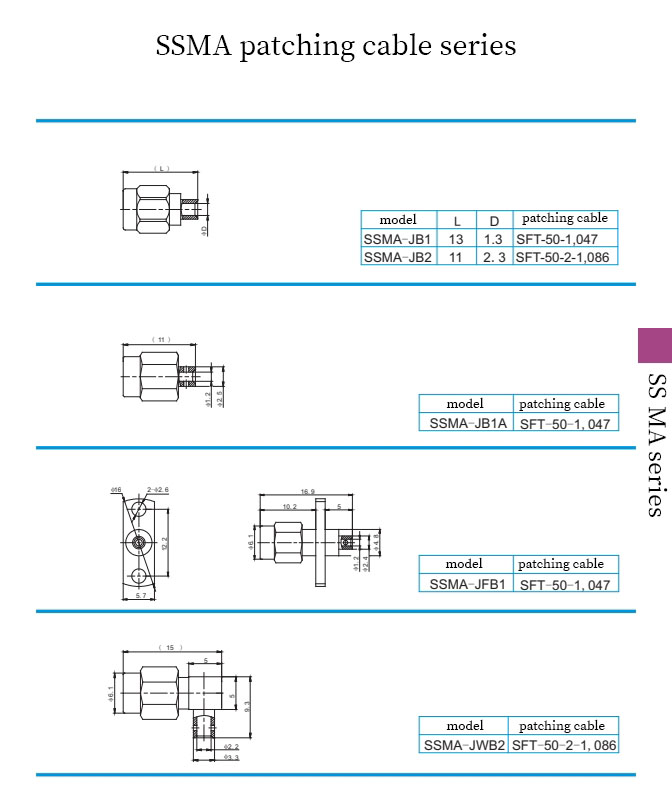

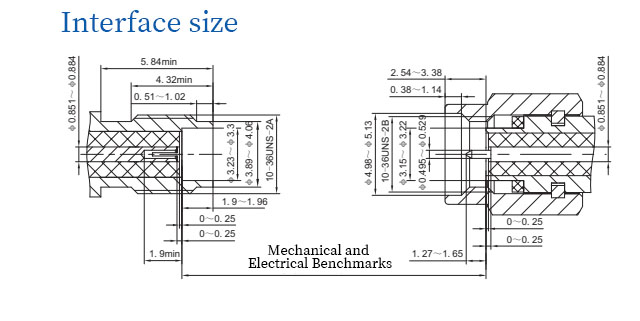

SSMA Series
SSMA series RF coaxial connectors are miniaturized products of SMA series connectors. They have the characteristics of small size, wide frequency band, excellent mechanical and electrical performance, and high reliability. They are widely used in aviation, aerospace, microwave communications and other fields.
It has the characteristics of small size, wide frequency band, excellent mechanical and electrical performance, and high reliability.

Key performance indicators

Characteristic impedance

50Ω

Connector durability

500

Insulation resistance

≥1000MΩ

Dielectric withstand voltage

750V

Contact resistance

Inner conductor ≤4.0mΩ, outer conductor ≤2.5mΩ

Frequency range



Straight DC~30GHz

VSWR

Straight type ≤1.05+0.012F(GHz)

Bent DC~18GHz

Bent type ≤1.06+0.015F(GHz)

RF insertion loss

Straight type≤0.05√F(GHz)dB

————

————

Bend type≤0.08√F(GHz)dB

Materials, surface treatment

Center contact

Pin

Brass, gold plated

Housing and other metal parts

Brass, gold or nickel plated

Jack

Beryllium bronze, gold plated

Stainless steel, passivated

Insulation medium

Polytetrafluoroethylene

Silicone Rubber

Sealing ring

×
