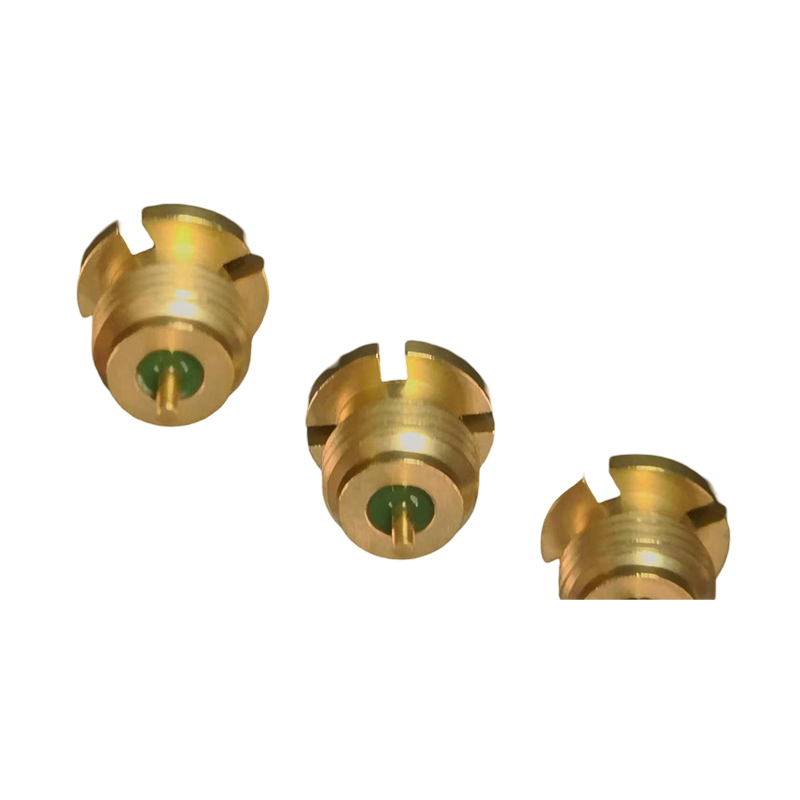

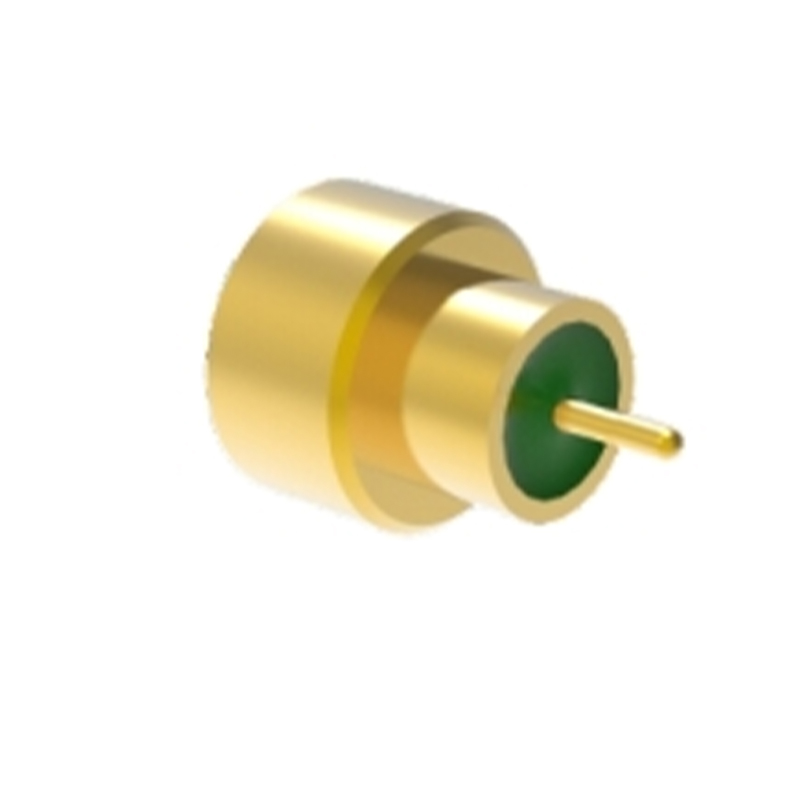

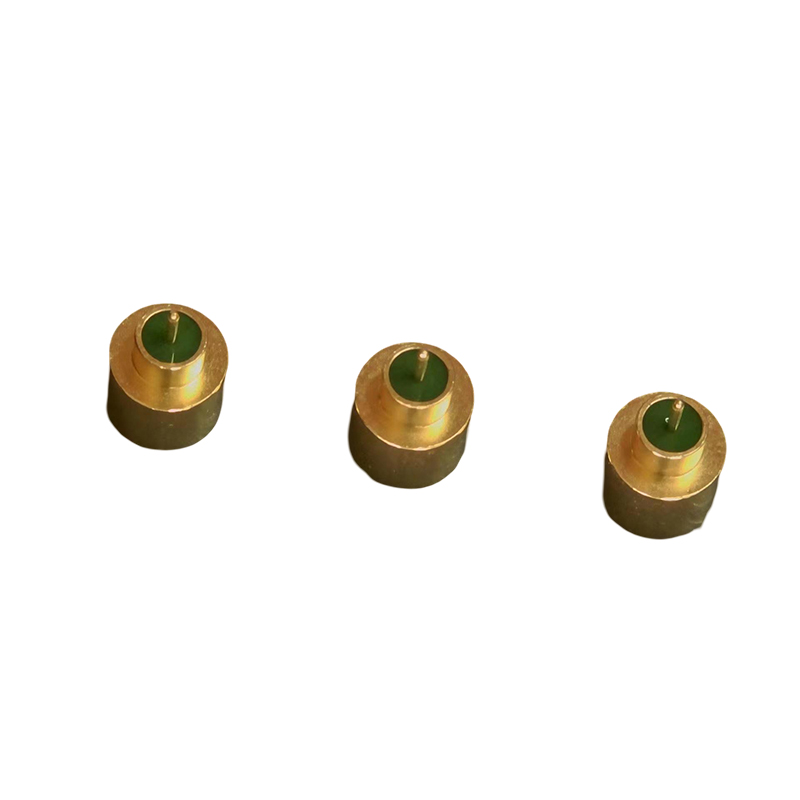

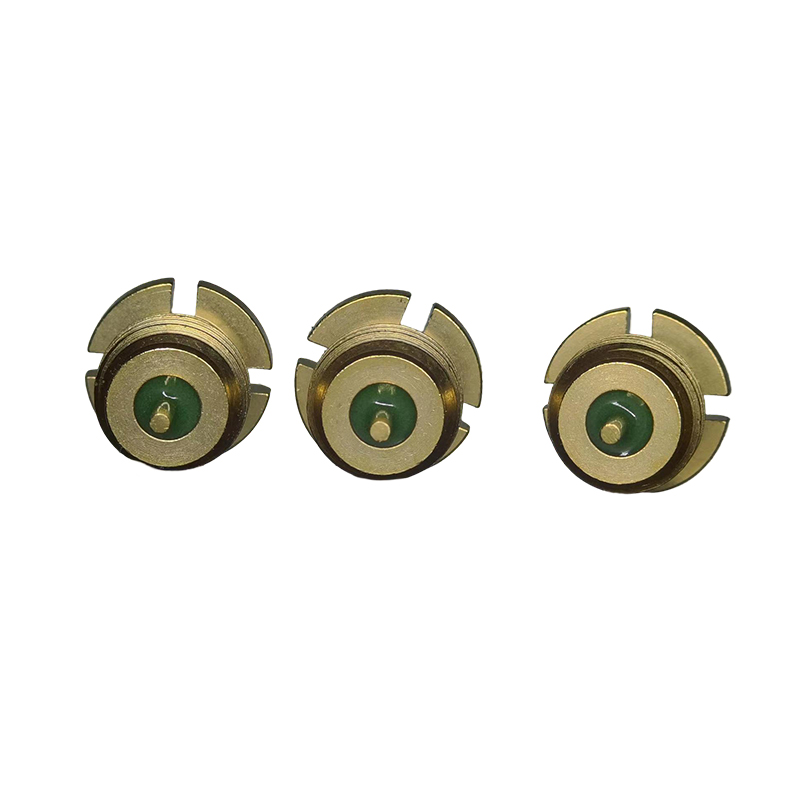

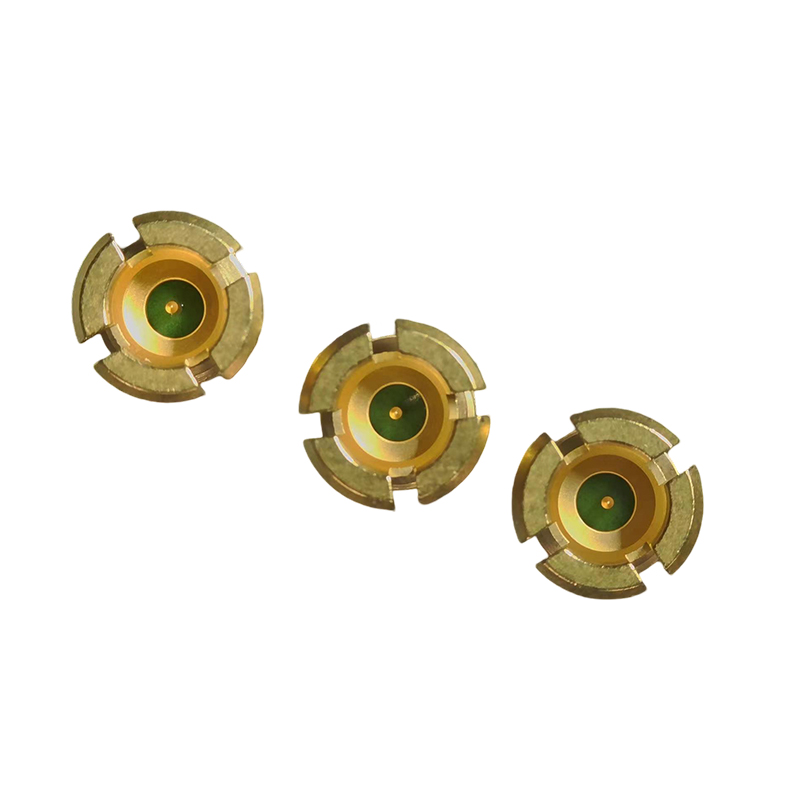

SMP Series Glass Sinter Connectors

SMP

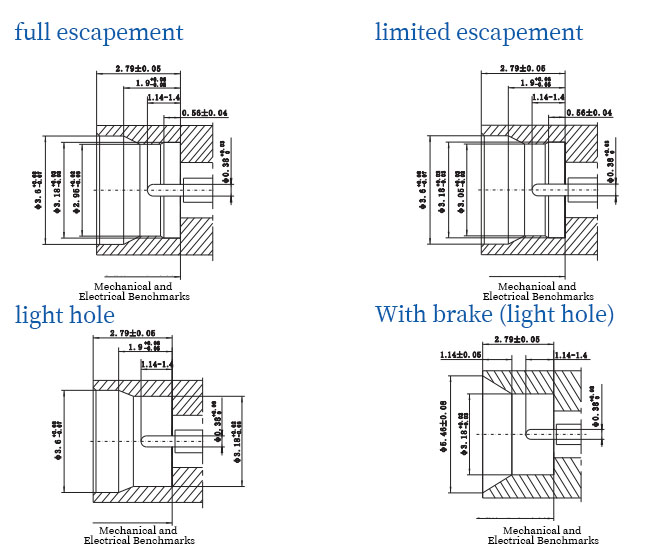

The SMP series products are an ultra-small push-in RF coaxial connector with the characteristics of small size, light weight, excellent seismic resistance, wide operating frequency band, etc. The operating frequency is up to 30GHz (the high-performance SMP connectors produced by our company can reach a frequency of 40GHz). The plug has three interface forms: full escapement, semi-escapement and light hole (including with brake). When used in pairs between boards, the various interface forms can meet the axial or radial floating required for blind mating, and are suitable for occasions requiring high reliability and modular intensive installation.

Consult

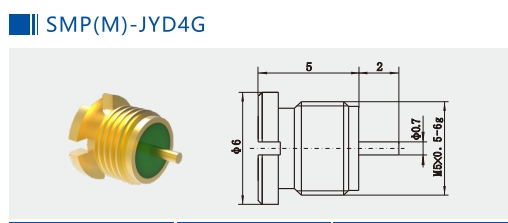

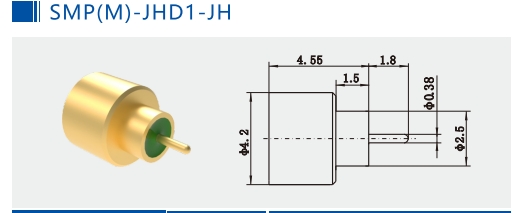

Features Technical Indicators Overall Dimension

It has the characteristics of small size, light weight, excellent seismic performance and wide working frequency band.

Electrical characteristics
Characteristic impedance	50Ω
Frequency range	DC~40GHz
Rated withstand voltage	170VRMS*
Dielectric withstand voltage	500VRMS*
Insulation resistance	≥5000MΩ
Contact resistance	Outer conductor	Conventional ≤2.5m0, airtight ≤4m2
	Inner conductor	Conventional ≤6mQ, airtight ≤26mQ
Voltage standing wave ratio		DC~18GHz	18~26.5GHz	26.5~40GHz
	Straight connector	≤1.25	≤1.3	≤1.4
	Angled connector	≤1.3
	Adapter	≤1.25	≤1.3	≤1.4
	Other	≤1.3
* Maximum at sea level
Material and mechanical properties
Inner conductor	Male head	Phosphor bronze/Kovar, gold plated
	Female head	Beryllium bronze, gold plated
Elastic parts	Beryllium bronze, gold-plated
Shell and other metal parts	Brass/Beryllium bronze/Kovar/Copper alloy, gold-plated
Insulating medium	Glass sintered/PTFE/PEI
Leakage rate of airtight seals	1.01325×10-3Pa*cm3/s
